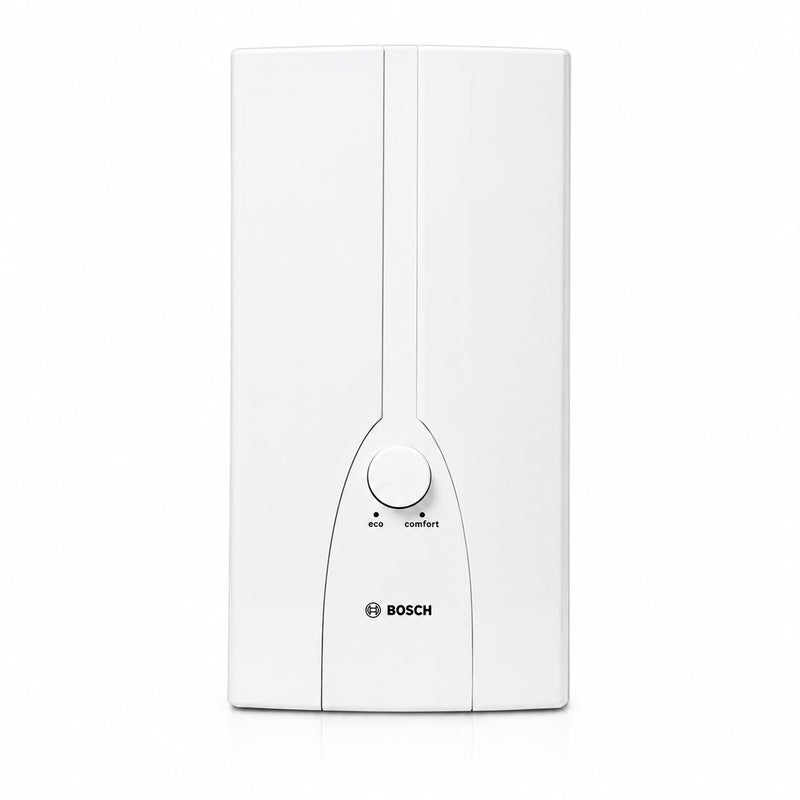

The Bosch TR2000 24 B instantaneous water heater has a powerful 24 kW heater and is suitable for both bathing and hand washing. Thanks to the high power of the heating element, this water heater produces up to 13.2 liters of hot water per minute. This model has an automatic power regulator that manages partial load up to 1/2 of the capacity with a small volume of drained water.

Efficiency and economy technologies

• Instantaneous water heater with automatic control

• Installation above the sink, closed system (pressurized)

• Automatic partial load control up to 1/2 of capacity with low volume of drained water

• Power selector for 2/3 and full power (position “e” and “II”)

• Split rear wall and wider cable channel for easy wall mounting

• Proven device safety by independent VDE testing institute

• Suitable for wet rooms and open areas with a canopy.

• Easy installation

Technical information

• Type: Instantaneous water heater with automatic control

• Installation: Above sink

• Application: Single power supply, hand washing, shower

• Rated power: 24,000 W

• Maximum pressure: 10 bar

• Control: Automatic

• Max. DHW output: 13.2 liters/minute

• Power supply: 400V / 50Hz

• Fuse: 40A

• Protection class: IP25

• Water heating efficiency class: class A

• Water heating energy efficiency: 38%

• Annual energy consumption: 483 kW/h

• Gross weight: 3.60 kg

• Dimensions (W x D x H): 236 x 124 x 472 mm
